Slitter laser · Premium

FocusPro™

FocusPro is the top of the LasX packaging range — a configure-to-order laser converting machine for flexible packaging converters and OEM lines, on webs from a 600 mm mid-web to 1,800 mm. It runs inline at web speeds up to 500 m/min in select applications, with up to eight independently controlled LaserSharp® processing modules, replacing mechanical tooling for easy-open features, breathable perforation, registered scoring, and contour cutting.

Webs to 350 mm run on MicroLam™, and easy-open scoring on a pouch-making machine you already run is the Scoreline™ module. Metal foil webs run on FoilPro™, the foil configuration of the same frame. Webs wider than 1,800 mm are quoted as custom equipment.

Trial this on our materialRequest a quoteDownload the brochure (PDF)See the packaging range at PACK EXPO →
FocusPro roll-to-roll laser converting machine running a printed flexible packaging web through a five-module laser bank

What it does on your line

The features this machine puts into the web, and what each one is worth on the finished pack. Specifications follow.

  • Easy-open scoring

    Precision-controlled laser scoring for clean, predictable easy-open performance — through the outer layer, barrier intact, registered to the print.

  • MAP micro-perforation

    High-accuracy micro-hole drilling for modified-atmosphere packaging, down to 50 µm pattern design, so respiration rate is set by the pattern rather than by the film.

  • Controlled venting

    Custom venting patterns for microwave-ready packaging, placed where the pack needs to release steam and nowhere else.

  • Window cutting

    Contour window cutting for product display and viewing, cut digitally so a new window shape does not mean new tooling.

  • OEM and line integration

    Flexible integration options for OEMs and automated production lines — the modules go into the press, laminator or slitter-rewinder you already run.

Specifications

Web width600, 1,000, 1,400, or 1,800 mm600 mm for mid-web converters. Wider than 1,800 mm is quoted as custom equipment.
Web speedUp to 500 m/minSelect applications. Achievable speed varies by material, feature density, and laser power.
Laser modules2 – 8 LaserSharp® LPMsLPM1 fixed beam, LPM2 contouring, LPM3 wide-field.
ConfigurationConfigure-to-orderWeb width, module count, laser power, drop removal, inspection.
Sample minimum300 m / 1,000 ftRequired for a representative process trial.
Design life15+ years

Configure-to-order

  • Web width — 600, 1,000, 1,400, or 1,800 mm
  • LPM quantity and laser power
  • Drop and slug removal
  • Vision for barcode job selection — instant order change between SKUs
  • Slitter-rewinder integration
  • µVerify™ — in-line inspection that measures feature size and position and feeds closed-loop control of the laser parameters, plus Pulse beam confirmation. Which features are measured depends on the application.

FocusPro exists because flexible packaging converters are asked to run more SKUs, in shorter runs, with more functional features — and mechanical tooling does not scale to that.

Every easy-open score, breathable perforation pattern, and registered feature becomes a digital recipe rather than a die. Changeovers happen in software. There is no tooling to order, store, sharpen, or wait for.

In production

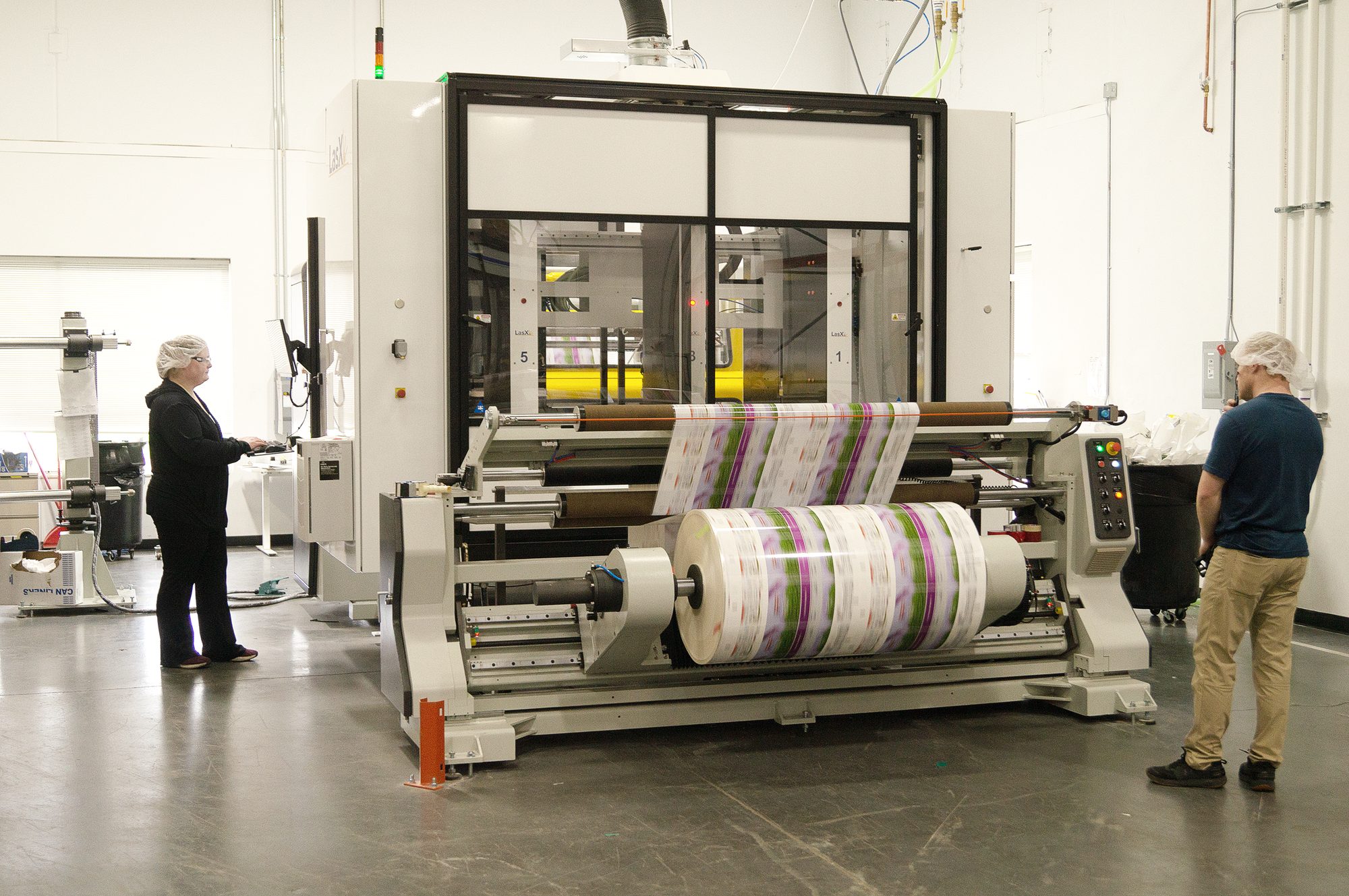

Two operators at a FocusPro line mounted over a slitter-rewinder, printed flexible packaging web running
On a converting floor — the laser bank sits over the slitter-rewinder the line already runs.

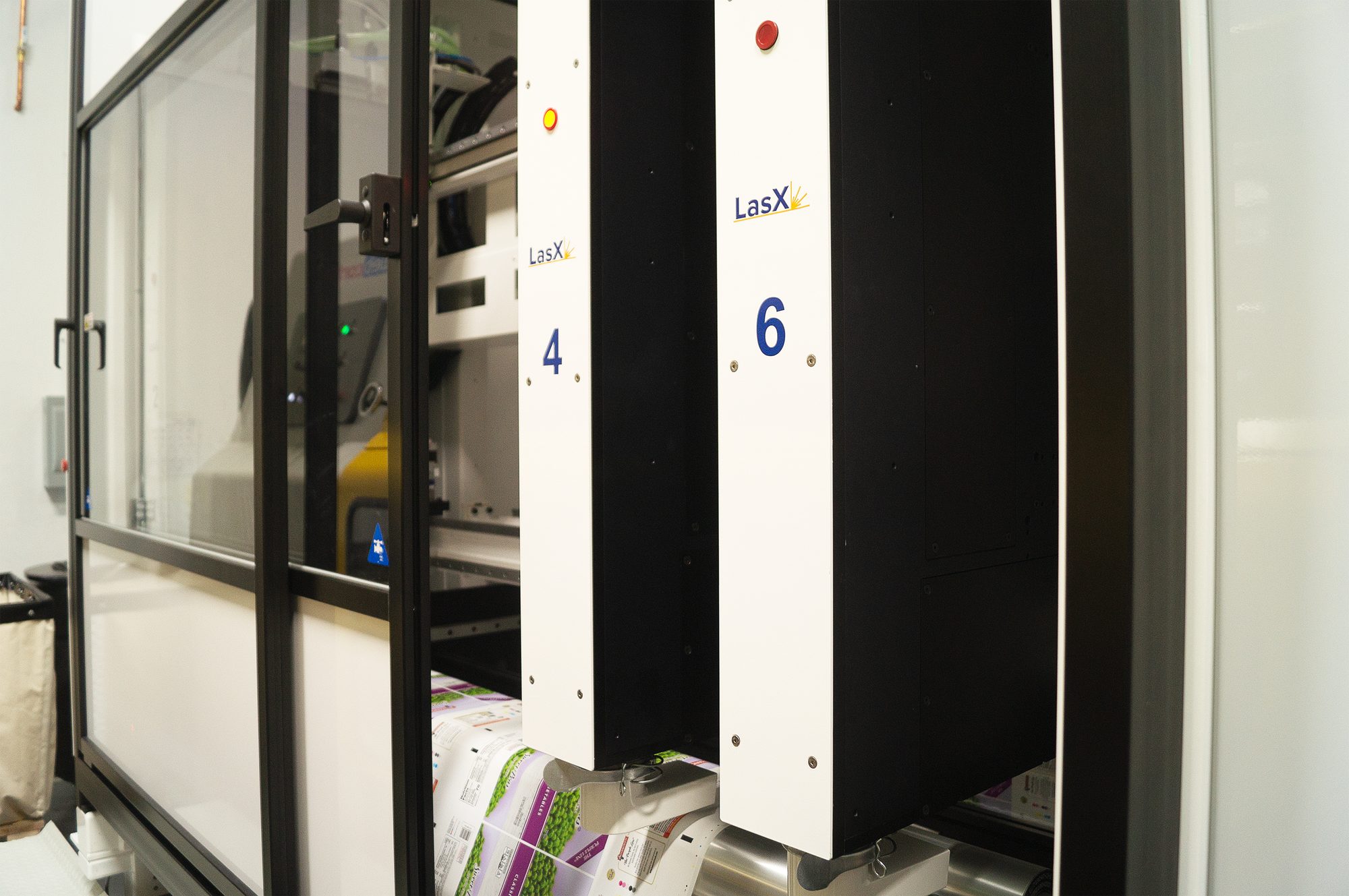

Close-up of numbered LaserSharp processing modules in a FocusPro laser bank
Modules in the bank, numbered by position across the web.

See it run

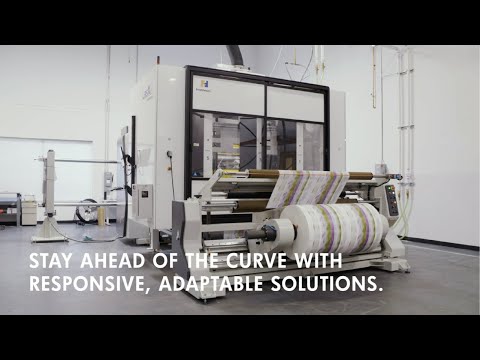

FocusPro standard machine — Wide-web laser perforation and scoring of packaging film, shot on the machine now sold as FocusPro (formerly FreshFocus).
Flexible packaging equipment — Roll-to-roll perforating and scoring of film on the FocusPro-class machine (formerly FreshFocus).

Industries

Processes

Questions buyers ask

Can FocusPro be retrofitted into an existing converting line?

Yes. FocusPro is built around LaserSharp® processing modules, which are designed to integrate into existing presses, laminators, and slitter-rewinders rather than requiring a full line replacement. Integration envelopes and control handshake documentation are available on request.

How does FocusPro relate to FreshFocus?

FocusPro is the successor to the FreshFocus platform and sits at the top of the LasX packaging range. Existing FreshFocus installations continue to be supported under ClearCut®, and upgrade paths are available.

What decides where a machine lands in the range?

Web width, the number of laser processing modules, laser power, and options such as drop removal and inline inspection. The Scoreline module covers easy-open scoring on a pouch-making machine you already run; MicroLam covers narrow webs to 350 mm.

Is there a FocusPro for a mid-web line?

Yes — FocusPro is built in a 600 mm web width for mid-web converters running roll-to-roll scoring, perforation, and contour cutting, with drop removal, on the same LaserSharp® modules and control as the 1,000 to 1,800 mm machines. Narrow webs to 350 mm run on MicroLam; widths beyond 1,800 mm are quoted as custom equipment.

What does a changeover between SKUs involve?

Opening the next product's recipe in LightGuide® — its artwork, laser settings, and registration. There is no die to change. With a vision option, a barcode printed on the web can select the next job by itself, so mixed SKUs run off one roll without stopping the line.

How do we confirm the process works on our film before committing?

Send 300 m (1,000 ft) of your material to the PhotonX lab. We run it, return processed samples, and provide a written process report covering parameters, edge quality, and achievable line speed.
